The Honda XL1000V Varadero Model is a dual sport Manufactured by Honda. This Motorcycle Was Produced From 1999-2012. This Motorcycle Has an engine of Water cooled, 4-stroke, 2-cylinder, 1000cc Engine. This Motorcycle Has been Added to 94.0 Horsepower. The Bike's top speed is Company Claimed To Be Around 201 km/h (125 mph). Honda XL1000V Varadero Acceleration is good which Can Reach 0 to 100 in 3.9 Seconds. The Honda XL1000V Varadero Bike's fuel tank capacity is 25.0 liters.
 |
| Honda XL1000V Varadero |
Honda XL1000V Varadero Gear Ratio
I 2.400
II 1.941
III 1.631
IV 1.434
V 1.291
VI 1.192
Honda XL1000V Varadero Fuel Consumption
The company claimed the mileage of the Honda XL1000V Varadero is 14.88 kmpl. (Avg.).Honda XL1000V Varadero Tire Pressure
Honda XL1000V Varadero Company Recommended Front Tire Pressure is 36 psi and The Rear Tire Pressure is 42 psi.Honda XL1000V Varadero Spark Plug Gap

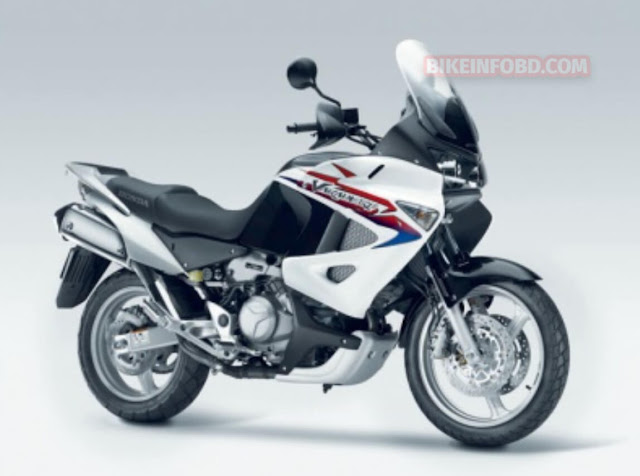

For this motorcycle, the manufacturer advises using spark plug gaps between 0.8-0.9 mm (0.031-0.035 inches).Honda XL1000V Varadero Photos
 |
| Honda XL1000 |
 |
| Honda XL1000V |
Honda XL1000V Varadero Wiring Diagram
 |
| Honda XL1000V Varadero Wirin |
Honda XL1000V Varadero Owner Service Manuals
Honda XL1000V Varadero Technical Specifications
| More Specification | |
|---|---|
| Bike Brand | Honda |
| Model Name / Also called | Honda Varadero 1000 |
| Production Year | 1999-2012 |
| Bike Type | dual sport |
| Successor | Honda VFR1200X Crosstourer |
| Brand Origin | Japan |
| Engine | |
|---|---|
| Engine Type | 1000cc, Water cooled, 4-stroke, 2-cylinders, V-twin |
| Displacement (cc) | 996 cm³ (60,8 cu in) |
| Maximum Power | 94,0 hp (69,0 kW) / 8000 rpm |
| Maximum Torque | 98 Nm (9,9 kg*m) / 6000 rpm |
| Ignition | Fully transistorized |
| Fuel Supply | Carburetor, 2x Keihin 42 mm – Varadero (1999-2002) Fuel injection: PGM-Fi, 42 mm – Varadero (2003-2012) |
| Bore & Stroke | 98,0 x 66,0 mm (3,90 x 2,60 in) |
| Starting | Electric |
| Cooling System | Water-cooled |
| Compression Ratio | 11.8:1 |
| Brakes | |
|---|---|
| Brake Types | Disc |
| Front Brake | Double disc, 296 mm, 3-piston calipers, combined (from 2004 - ABS) |
| Rear Brake | Single disc, 256 mm, 3-piston caliper, combined (from 2004 - ABS) |
Wheels and Tyres |
|
|---|---|
| Front Tire Size | 110/80 R19 59H |
| Rear Tire Size | 150/70 R17 69H |
| Dimension and Weight | |
|---|---|
| Seat height | 845 mm / 33,3 in – Varadero (1999-2002) 838 mm / 33,0 in – Varadero (2003-2012) |
| Overall height | 1460 mm / 57,5 in – Varadero (1999-2002) 1465 mm / 57,7 in – Varadero (2003-2012) |
| Overall length | 2295 mm / 90,4 in – Varadero (1999-2002) 2300 mm / 90,5 in – Varadero (2003-2006) 2292 mm / 90,2 in – Varadero (2007-2012) |
| Overall width | 880 mm / 34,6 in – Varadero (1999-2002) 930 mm / 36,6 in – Varadero (2003-2006) 924 mm / 36,4 in – Varadero (2007-2012) |
| Ground Clearance | 195 mm / 7,7 in – Varadero (1999-2002) 181 mm / 7,1 in – Varadero (2003-2012) |
| Dry weight | 220 kg / 485 lbs – Varadero (1999-2002) 235 kg / 518 lbs – Varadero (2003-2006) 245 kg / 540 lbs – Varadero (2007-2012) |
| Curb Weight | 250 kg / 551 lbs – Varadero (1999-2002) 265 kg / 584 lbs – Varadero (2003-2006) 269 kg / 593 lbs – Varadero (2007-2012) 277 kg / 610 lbs – Varadero ABS (2007-2012) |
| Mileage and Performance | |
|---|---|
| 0-60 Kmph | - |
| 0-100 Kmph | 3,9 sec. |
| Top Speed | 201 km/h (125 mph) |
| Fuel Capacity | 25,0 l / 6,6 US gal |
| Fuel economy | 6,72 l / 100 km (35 US mph) |
| Consumption Average | 14.88 kmpl |
| Fuel Type | Petrol / Octane |
| Recommended Engine Oil | Honda GN4 10W-40 |
| Features Value and Safety | |
|---|---|
| Speedometer | Yes |
| Tachometer | Yes |
| Tripmeter | Yes |
| Electricals and Transmission | ||
|---|---|---|
| Number of Used Plugs | - | |
| Recommended Spark Plugs | NGK CR8EH-9 | |
| Air Filter | - | |
| Battery | - | |
| Voltage | 12V-12Ah – Varadero (1999-2002) 12V-18Ah – Varadero (2003-2012) |
|
| Head Light | Yes | |
| Tail Light | Yes | |
| Gear Box | 5-speed – Varadero (1999-2002) 6-speed – Varadero (2003-2012) |
|
| Final Drive | Chain | |
| Clutch | Wet, multi-plate, cable operated | |
| Chain Size | 525 |
| Chassis and Suspension | |
|---|---|
| Front Suspension | 43 mm telescopic fork, 175 mm (6,9 in) – Varadero (1999-2002) 43 mm telescopic fork, 155 mm (6,1 in) – Varadero (2003-2012) |
| Rear Suspension | Swingarm (Pro-Link) with mono-shock, 155 mm (6,11 in) – Varadero (1999-2002) Swingarm (Pro-Link) with mono-shock, 145 mm (5,7 in) – Varadero (2003-2012) Adjustable: spring pre-load, compression damping |
| Frame type | Diamond (steel) |
| More Specification | |
|---|---|
| Bike Colours | Black, Silver, Red, Blue, Yellow, White |
| No. of Cylinders | 2 cylinder |
