Kawasaki KLR650 (KL650-A, KL650-B, KL650-C, KL650-E) Specs, Top Speed, Mileage, Picture, Diagram & History

The Kawasaki KLR650 Model is a dual sport Manufactured by Kawasaki. This Motorcycle Was Produced From 1987-2018. This Motorcycle Has an engine of Liquid-cooled, 4-stroke, Single cylinder, 650cc Engine. This Motorcycle Has been Added to 48.0 Horsepower. The Bike's top speed is Company Claimed To Be Around 150 km/h (93 mph). Kawasaki KLR650 Acceleration is Good Which Can Reach 0 to 100 in 5.88 Seconds. The Kawasaki KLR650 Bike's fuel tank capacity is 23.0 liters.

Kawasaki KLR650 (KL650-A, KL650-B, KL650-C, KL650-E)

Kawasaki KLR650 Gear Ratio

I    2.266

II   1.529; 1.444 – KL650-C, E

III  1.181; 1.136 – KL650-C, E

IV  0.954

V   0.791

VI  1.192

Kawasaki KLR650 Fuel Consumption

The company claimed the mileage of the Kawasaki KLR650 is 20.50 kmpl. (Avg.).

Kawasaki KLR650 Tire Pressure

Kawasaki KLR650 Company Recommended Front Tire Pressure is 33 psi and The Rear Tire Pressure is 36 psi.

Kawasaki KLR650 Spark Plug Gap

For this motorcycle, the manufacturer advises using spark plug gaps between 0.6-0.7 mm (0.024-0.028 inches).

Kawasaki KLR650 Photos

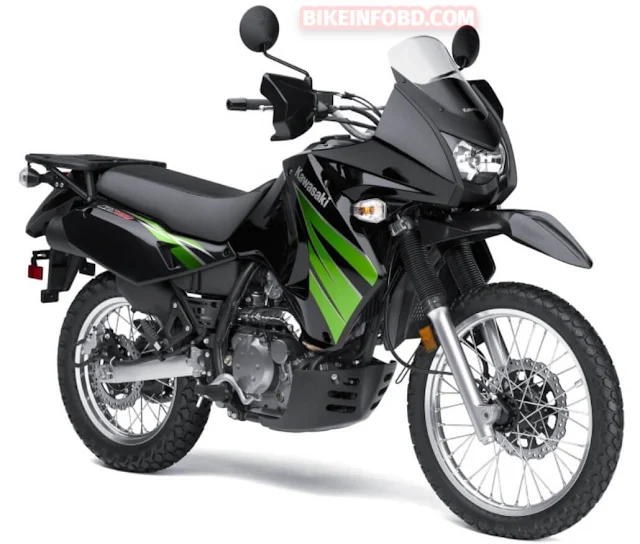

Kawasaki KLR650 (KL650-E) 2008-2018

Kawasaki KLR650 Camo 2016-2018

Kawasaki KLR650 New Edition (KL650-EES) 2014

Kawasaki KLR650 Wiring Diagram

klr 650 wiring diagram

Kawasaki KLR650 Owner Service Manuals

Kawasaki KLR650: Service Manual, KL650-A

Kawasaki KLR650 (Tengai): Owners Manual, KL650-B

Kawasaki KLR650: Service Manual, KL650-E

Kawasaki KLR650 Technical Specifications

More Specification
Bike Brand	Kawasaki
Model Name / Also called	Kawasaki KLR650
Production Year	1987-2018
Bike Type	dual sport
Successor	Kawasaki KLR650 (2022+)
Brand Origin	Japan

Engine
Engine Type	650cc, Liquid-cooled, 4-stroke, Single cylinder
Displacement (cc)	651 cm³ (38,7 cu-in)
Maximum Power	48,0 hp (35,3 kW) / 6500 rpm – max. power for full-power version
Maximum Torque	54,9 Nm (5,6 kg*m) / 5500 rpm – max. torque for full-power version
Ignition	CDI – KL650A-C Fully transistorized – KL650-E
Fuel Supply	Carburetor, 1x Keihin CVK40
Bore & Stroke	100,0 x 83,0 mm
Starting	Electric
Cooling System	Liquid -cooled
Compression Ratio	9.5:1 – KL650A-C 9.8:1 – KL650-E

Brakes
Brake Types	Disc & Drum
Front Brake	Single disc, 1-piston caliper – KL650-A Single disc, 2-piston caliper – KL650-B,C Single disc, 280 mm, 2-piston caliper – KL650-E
Rear Brake	Single disc, 1-piston caliper – KL650-A,B,C Single disc, 240 mm, 2-piston caliper – KL650-E

Wheels and Tyres
Front Tire Size	90/90-21 54S
Rear Tire Size	130/80-17 65S – KL650-A,B,E 120/90-17 64S – KL650-C

Dimension and Weight
Seat height	890 mm / 35,0 in – KL650-A, C, E 870 mm / 34,3 in – KL650-B
Overall height	1345 mm / 52,9 in – KL650-A 1300 mm / 51,2 in – KL650-B 1220 mm / 48,0 in – KL650-C 1350 mm / 53,1 in – KL650-E
Overall length	2290 mm / 90,1 in – KL650-A 2175 mm / 86,6 in – KL650-B 2190 mm / 86,2 in – KL650-C 2295 mm / 90,4 in – KL650-E
Overall width	940 mm / 37,0 in – KL650-A 920 mm / 36,2 in – KL650-B 905 mm / 35,6 in – KL650-C 960 mm / 37,8 in – KL650-E
Ground Clearance	240 mm / 9,4 in – KL650-A 210 mm / 8,3 in – KL650-B, E 215 mm / 8,5 in – KL650-C
Dry weight	153 kg / 337 lbs – KL650-A 159 kg / 351 lbs – KL650-B 168 kg / 370 lbs – KL650-C 175 kg / 386 lbs – KL650-E
Curb  weight	196-200 KG

Mileage and Performance
0-60 Kmph	-
0-100 Kmph	5,88 sec.
Top Speed	150 km/h
Fuel Capacity	23,0 l / 6,07 US gal – KL650-A,B 14,0 l / 3,7 US gal – KL650-C 22,0 l / 5,8 US gal – KL650-E
Fuel economy	4,88 l / 100 km (48,2 US mpg)
Consumption Average	20.50 kmpl
Fuel Type	Petrol / Octane
Recommended Engine Oil	K-tech 10W-40

Features Value and Safety
Speedometer	Yes
Tachometer	Yes
Tripmeter	Yes

Electricals and Transmission
Number of Used Plugs
Recommended Spark Plugs	NGK DPR8EA-9
Air Filter
Battery
Voltage	12V-14Ah
Head Light	Yes
Tail Light	Yes
Gear Box	5-speed constant mesh
Final Drive	Chain
Clutch	Wet, multi-plate, cable operated
Chain Size	520

Chassis and Suspension
Front Suspension	38 mm telescopic fork (air-adjustable), 230 mm / 9,1 in – KL650-A 38 mm telescopic fork (air-adjustable), 220 mm / 9,1 in – KL650-B 41 mm telescopic fork, 200 mm / 7,9 in – KL650-E
Rear Suspension	Swingarm Uni-Trak with mono-shock (adjustable spring pre-load & rebound damping), 230 mm / 9,1 in – KL650-A Swingarm Uni-Trak with mono-shock (adjustable spring pre-load & rebound damping), 200 mm / 7,9 in – KL650-B Swingarm Uni-Trak with mono-shock (adjustable spring pre-load & rebound damping), 185 mm / 7,3 in – KL650-E
Frame type	Tubular, semi double cradle (steel)

More Specification
Bike Colours	Lime Green, Ebony, Candy Thunder Blue, Sunbeam Red, Pearl Solar Yellow, Metallic Matte Carbon Gray, Metallic Spark Black
No. of Cylinders	1 cylinder
