Kawasaki Ninja 250R (EX250J, EX250K, EX250L, EX250M, EX250P) Specs, Top Speed, Mileage, Picture, Diagram & History

The Kawasaki Ninja 250R Model is a sport Manufactured by Kawasaki. This Motorcycle Has been in production since 2008 To the Present. This Motorcycle Has an engine of  Liquid-cooled, 4-stroke, 2-cylinder, 250cc Engine. This Motorcycle Has been Added to 33.0 Horsepower. The Bike's top speed is Company Claimed To Be Around 157 km/h (97,7 mph). Kawasaki Ninja 250R Acceleration is Good Which Can Reach 0 to 100 in 7.89 Seconds. The Kawasaki Ninja 250R Bike's fuel tank capacity is 17.8 liters.

Kawasaki Ninja 250R (EX250J, EX250K, EX250L, EX250M, EX250P)

Kawasaki Ninja 250R Gear Ratio

I    2.600; 2.769 – EX250P

II   1.789; 1.894 – EX250P

III  1.409; 1.500 – EX250P

IV  1.160 (1.136 – EX250L, EX250M); 1.240 – EX250P

V   1.000; 1.074 – EX250P

VI  0.892; 0.960 – EX250P

Kawasaki Ninja 250R Fuel Consumption

The company claimed the mileage of the Kawasaki Ninja 250R is 26.17 kmpl. (Avg.).

Kawasaki Ninja 250R Tire Pressure

Kawasaki Ninja 250R Company Recommended Front Tire Pressure is 29 psi and The Rear Tire Pressure is 32 psi.

Kawasaki Ninja 250R Spark Plug Gap

For this motorcycle, the manufacturer advises using spark plug gaps between 0.7-0.8 mm (0.028-0.031 inches).

Kawasaki Ninja 250R Photos

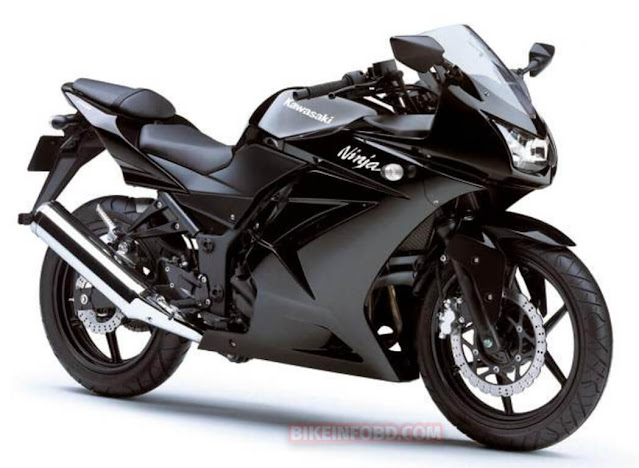

Kawasaki Ninja 250R (EX250J, EX250K, EX250L)

Kawasaki Ninja 250R

Kawasaki Ninja 250R Wiring Diagram

Ninja 250R Wiring Diagram

Kawasaki Ninja 250R Owner Service Manuals

Kawasaki Ninja 250R Manuals PDF

Kawasaki Ninja 250R Technical Specifications

More Specification
Bike Brand	Kawasaki
Model Name / Also called	EX250 Ninja
Production Year	2008+
Bike Type	sport
Predecessor	Kawasaki ZZR250
Successor	Kawasaki Ninja 300
Brand Origin	Japan

Engine
Engine Type	250cc, Liquid-cooled, 4-stroke, 2-cylinders, inline
Displacement (cc)	249 cm³ (15,19 cu in)
Maximum Power	31,8 hp (23,4 kW) / 11000 rpm – EX250J 33,0 hp (24,0 kW) / 11000 rpm – EX250K 31,0 hp (23,0 kW) / 11000 rpm – EX250K (Japan),EX250L (Japan) 37,0 hp (27,0 kW) / 12500 rpm – EX250P
Maximum Torque	22,0 Nm (2,24 kgf*m) / 9500 rpm – EX250J 22,0 Nm (2,2 kgf*m) / 8200 rpm – EX250K 21,0 Nm (2,1 kgf*m) / 8500 rpm – EX250K (Japan), EX250L (Japan) 23,0 Nm (2,4 kgf*m) / 10000 rpm – EX250P
Ignition	Transistorized
Fuel Supply	Carburetor, 2x Keihin CVK30 – EX250J FI (Fuel Injection), 2x Keihin TTK28 – EX250K FI (Fuel Injection) with dual throttle valve – EX250L, EX250M FI (Fuel Injection), 2x 32 mm - EX250P
Bore & Stroke	62,0 x 41,2 mm
Starting	Electric
Cooling System	Liquid -cooled
Compression Ratio	11.6:1 – EX250J, EX250K, EX250P 11.3:1 – EX250L, EX250M

Brakes
Brake Types	Disc
Front Brake	Single disc, 290 mm, 2-piston caliper (optional - ABS) Single disc, 310 mm, 2-piston caliper (optional - ABS) – EX250P
Rear Brake	Single disc, 220 mm, 2-piston caliper (optional - ABS)

Wheels and Tyres
Front Tire Size	110/70-17M/C (54S) – EX250J, EX250K 110/70-17M/C (54H) – EX250L, EX250M, EX250P
Rear Tire Size	130/70-17M/C (62S) – EX250J, EX250K 140/70-17M/C (66H) – EX250L, EX250M, EX250P

Dimension and Weight
Seat height	775 mm / 30,5 in – EX250J, EX250K 785 mm / 30,9 in – EX250L, EX250M 795 mm / 31,3 in – EX250P
Overall height	1110 mm / 43,7 in 1125 mm / 44,3 in – EX250P
Overall length	2085 mm / 82,1 in – EX250J, EX250K 2020 mm / 82,1 in – EX250L, EX250M 1990 mm / 78,3 in – EX250P
Overall width	715 mm / 28,1 in 710 mm / 27,9 in – EX250P
Ground Clearance	130 mm / 5,1 in 145 mm / 5,7 in – EX250P
Dry weight	-
Curb  weight	169 kg / 373 lbs – EX250J, EX250K 172 kg / 379 lbs – EX250L 174 kg / 383 lbs – ABS 166 kg / 366 lbs – EX250P

Mileage and Performance
0-60 Kmph	-
0-100 Kmph	7,89 sec.
Top Speed	157 km/h
Fuel Capacity	17,8 l / 4,7 US gal – EX250J, EX250K 17,0 l / 4,5 US gal – EX250L, EX250M 14,0 l / 3,7 US gal – EX250P
Fuel economy	3,82 l / 100 km (61,6 US mpg)
Consumption Average	26.17 kmpl
Fuel Type	Petrol / Octane
Recommended Engine Oil	K-tech 10W-40

Features Value and Safety
Speedometer	Yes
Tachometer	Yes
Tripmeter	Yes

Electricals and Transmission
Number of Used Plugs
Recommended Spark Plugs	NGK CR8E or CR9E
Air Filter
Battery
Voltage	12V-8Ah
Head Light	Yes
Tail Light	Yes
Gear Box	6-speed
Final Drive	Chain
Clutch	Wet, multi-plate, cable operated
Chain Size	520

Chassis and Suspension
Front Suspension	Telescopic fork 37 mm, 120 mm / 4,72 in Telescopic fork 41 mm, 120 mm / 4,72 in – EX250P
Rear Suspension	Swingarm Uni-Trak with mono-shock, 130 mm / 5,12 in Adjustable: 5-way spring pre-load
Frame type	Tubular, diamond (steel) Trellis, high-tensile steel – EX250P

More Specification
Bike Colours	Lime Green, Ebony (Black), Candy Plasma Blue, Passion Red, Metallic Spark Black, Metallic Moondust Gray, Pearl Stardust White
No. of Cylinders	2 cylinder
