Suzuki AX100 Specs, Top Speed, Mileage, Picture, Diagram & History

The Suzuki AX100 Model is a Commuter Motorcycle Manufactured by Suzuki. This Motorcycle Was Produced From 1997-2000. This Motorcycle Has an engine of Air-cooled, 2-stroke, Single cylinder,100cc Engine. This Motorcycle Has been Added to 8.0 Horsepower. The Bike's top speed is Company Claimed To Be Around 87 km/h. Suzuki AX100 Acceleration is good which Can Reach 0 to 60 in 9.0 Seconds. The Suzuki AX100 Bike's fuel tank capacity is 12.0 liters.

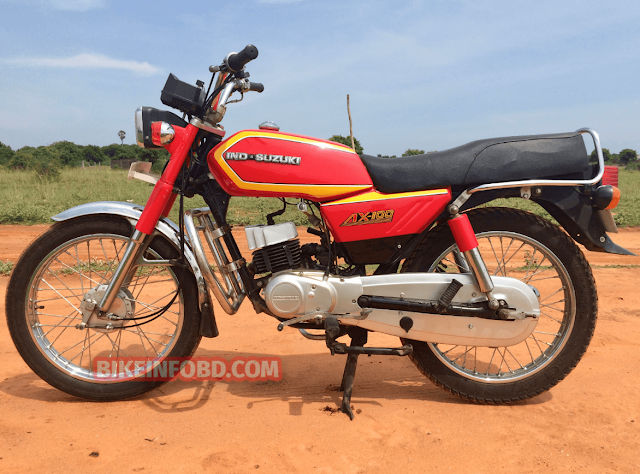

Suzuki AX100

Suzuki AX100 Fuel Consumption

The company claimed the mileage of the Suzuki AX100 is 40-45 kmpl. (Avg.).

Suzuki AX100 Tire Pressure

Suzuki AX100 Company Recommended Front Tire Pressure is 28 psi and The Rear Tire Pressure is 32 psi.

Suzuki AX100 Spark Plug Gap

For this motorcycle, the manufacturer advises using spark plug gaps between 0.6-0.7 mm (0.024-0.028 inches).

Suzuki AX100 Photos

AX-100

Suzuki 100cc

Suzuki AX 100 Original Key

Suzuki AX

Suzuki AX100 Wiring Diagram

AX100 Wiring Diagram

Suzuki AX100 Technical Specifications

More Specification
Bike Brand	Suzuki
Model Name / Also called	AX100
Production Year	1984-1989
Bike Type	Commuter
Brand Origin	Japan

Engine
Engine Type	100cc, Air-cooled, 2-stroke,  Single cylinder, case reed induction
Displacement (cc)	98.00 cc
Maximum Power	8 PS @ 5500 rpm
Maximum Torque	54 Nm (5,5 kg*m) / 4500 rpm
Ignition	capacitor discharge ignition
Fuel Supply	Carburettor
Bore & Stroke	50 mm × 50 mm (2.0 in × 2.0 in)
Starting	Kick Start
Cooling System	Air-cooled
Compression Ratio	6.6:1

Brakes
Brake Types	Drum
Front Brake	Internal Expanding (110 Dia)
Rear Brake	Internal expanding (110 Dia)

Wheels and Tyres
Front Tire Size	2.50-18
Rear Tire Size	3.00-18

Dimension and Weight
Seat height	780 millimeters (30.3 to 30.7 inches)
Overall height	1,053 mm (41.5 in)
Overall length	2,057 mm (81.0 in)
Overall width	725 mm (28.5 in)
Ground Clearance	156 mm
Dry weight	87 kilograms (192 pounds)
Curb Weight	96 kilograms (211 pounds)

Mileage and Performance
0-60 Kmph	9.0 sec
0-100 Kmph
Top Speed	87 km/h (Manufacturer claimed)
Fuel Capacity	12 L (2.6 imp gal; 3.2 US gal)
Fuel economy	-
Consumption Average	40 to 45 kilometers (Manufacturer claimed)
Fuel Type	Petrol / Octane
Recommended Engine Oil	10W-40

Features Value and Safety
Speedometer	Yes
Tachometer	Yes
Tripmeter	Yes

Electricals and Transmission
Recommended Spark Plugs	NGK B8E ,NGK B8HS
Air Filter	Emgo Air Filter 12-95570 Hiflofiltro Air Filter HFA3904 Uni Air Filter NU-2442
Oil Filter	-
Battery	Yuasa YB4L-B GS GT4L-BS Power Sonic PTX4L-BS
Voltage	12V
Head Light	Yes
Tail Light	Yes
Gear Box	4-speed
Final Drive	Chain
Clutch	wet multi-plate clutch
Chain Size	428

Chassis and Suspension
Front Suspension	Telescopic Oil damped
Rear Suspension	Swinging arm, hydraulic shock absorber with coaxial spring
Frame type	single-cradle

More Specification
Bike Colours	Black,Red,Blue,Silver,Yellow,White
No. of Cylinders	1 cylinder
